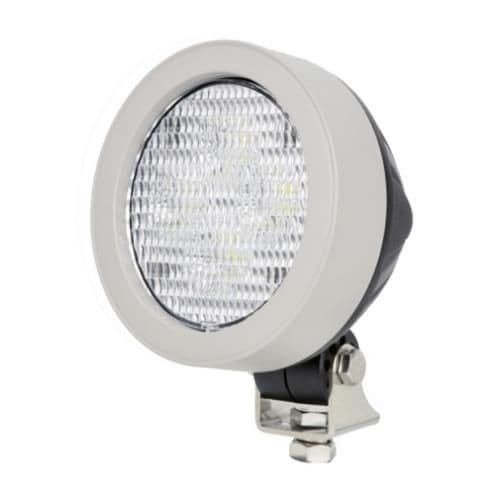

John Deere OEM Replacement Light - Grey Bezel

40 Watt LED Work Light (Grey), 3200 Lumen

(Suitable for John Deere*, Premium Series)

General Characteristics

• Housing: Diecast Aluminium
• FloodBeam
• 40w LED Cab Work Light
• 9/32V
• 50,000h
• IP68
• ECE R10 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With 7024 Plug & Socket
• Dimensions 120 x 140 x 102mm

Technical Light Properties

• Light Colour: Cold white
• Colour temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 40 Watt
• 40W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 3200 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 120 mm
• Lamp height: 140 mm
• Lamp thickness: 102 mm

*O.E.M Ref:RE567623, RE219708

*Compatible with the following:

John Deere

6020-6030-7030-5020 and 6M series

• 5020 Series
• 5420, 5620, 5720, 5820, 5220, 5320, 5520
• 6020 Series
• 6020, 6120, 6220, 6320, 6420, 6520, 6620, 6820, 6920, 6920 S, 6420 S, 6120 E
• 6030 Series
• 6230, 6330, 6430
• 7020 Series
• 7420, 7520, 7220, 7320
• 7030 Series
• 7130
• 5025 Series
• 5625, 5525, 5725, 5625 HC, 5725 H
• 6005 Series
• 6215, 6415, 6615, 6715
• 5E Series
• 5050 E, 5085 E, 5100 E, 5090 E, 5075 E, 5065 E, 5055 E, 5060 E, 5083 EN, 5093 EN, 5076 E, 5082 E, 5045 E, 5083 E, 5093 E, 5090 EH, 5101 E, 5101 EN, 5058 E, 5067 E
• 5003 Series
• 5603
• 5005 Series
• 5225, 5325, 5425, 5425 HC
• 6M Series
• 6105 M, 6115 M, 6125 M, 6130 M, 6140 M, 6170 M, 6105 MC, 6120 M, 6145 M, 6155 M, 6175 M, 6195 M, 6090 MC, 6100 MC, 6110 MC, 6115 MC, 6110 M
• 5M Series-5100 MH, 5100 M, 5070 M, 5080 M, 5090 M, 5075 M, 5085 M, 5115 M, 5095 MH, 5095 M, 5065 M, 5105 M, 5105 ML
• 5R Series
• 5090 R, 5080 RN, 5080 R, 5100 R, 5100 RN, 5090 RN
• 6RC Series
• 6090 RC, 6100 RC, 6110 RC, 6105 RC, 6115 RC
• 6D Series
• 6100 D, 6110 D, 6115 D, 6125 D, 6130 D, 6140 D, 6115 D iT4, 6130 D iT4, 6140 D iT4
• 6003 Series
• 6603, 6403
• 6E Series
• 6125 E, 6100 E, 6110 E, 6115 E, 6130 E, 6120 E FT4, 6135 E FT4
• 6J Series

6140 J, 6155 J, 6105 J, 6125 J, 6170 J, 6190 J, 6210 J, 6135 J, 6150 J, 6115 J, 6100 J

*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
