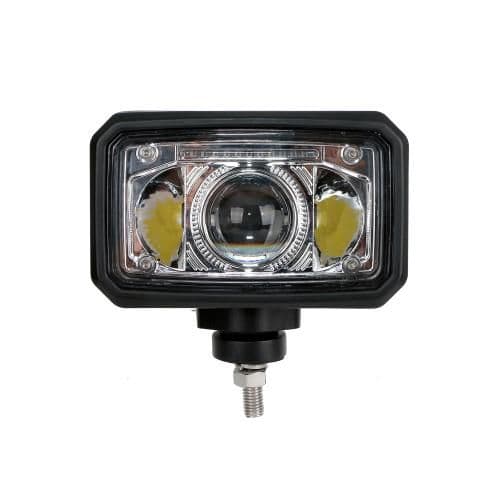

Rectangle Headlights & DRL - Pair

102 Watt LED High & Low Beam Headlight with DRL, 5760 Lumen - LG829

General Characteristics

• Housing: Diecast Aluminium
• 60w High Beam
• 30w Low Beam
• 12wDRL(DaytimeRunningLight)
• 9/32V
• 50,000h
• IP68
• ECE R10, ECE R112, ECE R148 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With 4 Pin Deutsch Plug & Play Connector
• Dimensions 170 x 106 x 80mm

Technical Light Properties

• Light Colour: Cold white
• Ireland / UK Headlight
• Colour temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 60 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 5760 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 170 mm
• Lamp height: 106 mm
• Lamp thickness: 80 mm

*O.E.M Ref:

AL77589, AL204951 AEBI 0233283-1, 07076571, 16029758, 4082300096880, 1AB007145-001,

1AB 007 145-001, AZ 50258, AL77589, AM120887, 41L06H3020, 0924746/0, 7.512.044.000.0, 6004186, 438195138

*CompatibleWith The Following:

Massey Ferguson

BL.A 5400Series

John Deere

*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
