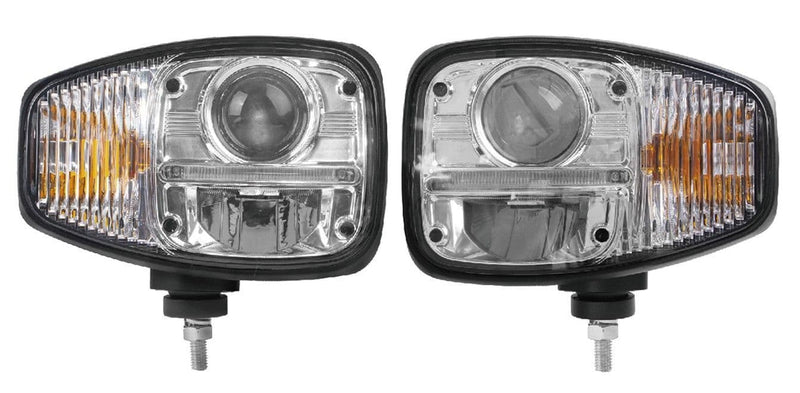

Wilderness Lighting Combination Headlight

100 Watt LED Headlight with Front Rear Indicator (RH) & DRL, 5600 Lumen

General Characteristics

• Housing: Powder coated aluminium
• 70w High Beam
• 30w Low Beam
• 12w D.R.L
• 12w Indicator
• 9/32V
• 50,000h
• E Mark Certified
• IP68
• ECE R10, ECE R149, ECE R112, ECE R148, ECE R7 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With 6 Pin Deutsch Socket & Plug
• Dimensions 229 x 152 x 106mm

Technical Light Properties

• Lightcolor: Cold white
• Colortemperature: 6000K

Electrical Characteristics

• Nominal lamp power: 100 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 5,600 lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 229 mm
• Lamp height: 152 mm
• Lamp thickness: 106 mm

O.E.M Ref:

JCB 700/50192,JCB 700/50193

Hella 1EE 996 174-401,1SA996120107,1EE996174201

AEBI (12671021),AEBI (12683795),HELLA (Combi220),MAFI (0005800148),MAN (81251016403)

MAN (81.25101.6403FF),MAN (81251016792),MAN (81AC1258117),MANITOU (929717),PAUS (556625)

SCANIA (20223061),VOLVO (17 286 451),Faresin(ME11096A40)

COMPATIBLE WITH THE FOLLOWING:

Manitou
MLT625 , MLT627 , MLT629 , MT1030 , MT1135 , MT1235 , MT1335 , MT1435 , MT1440

MT1840 , MT625 , MT732 , MT835 , MT928 , MT932 , MT940 , MTX625 , MTX731 , MTX732

JCB
526-56 , 527-58 , 531-70 , 533-105 , 533-140 , 535-95 (Loader) , 536-60 , 540-140 , 540-170 , 540-200 ,

550-140 , 550-80 , FASTRAC 2115 , FASTRAC 2170 , FASTRAC 3200 , FASTRAC 3230 , FASTRAC 7170 ,

FASTRAC 7200 , FASTRAC 7230 ,FASTRAC 7270 , FASTRAC 8250 , FASTRAC 8280 , FASTRAC 8310

Caterpillar,Volvo,Terex

Wiring Diagram

Black is earth
White is DRL
Blue is Indicator
Brown is Dip
Red is Full Beam
